Sarix™ 300MM PEDESTRIAN TRAFFIC LIGHT RED AND GREEN MAN-WALKING + RG DISPLAY WITH 5MM LEDS

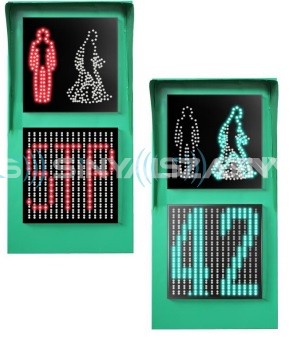

Animated pedestrian signal

300 mm pedestrian signal head with a red standing man, green walking man and a red/green countdown display, built with 5 mm LEDs. It runs on 85–265 VAC, 50/60 Hz, has a service life of over 80,000 hours and complies with EN 12368, CE and RoHS.

Color
LED Qty · Intensity · Wave length · Power Consumption
Red Man
81pcs · ≥20000cd/m² · 620~630nm · ≤10W
Green Man
177pcs · ≥40000cd/m² · 503~508nm · ≤10W
Display
R : 256pcs G : 256pcs · R ≥20000cd/m² G ≥40000cd/m² · R : 620~630nm G : 503~508nm · R ≤10W G ≤10W
Sarix™ 300MM PEDESTRIAN TRAFFIC LIGHT RED AND GREEN MAN-WALKING + RG DISPLAY WITH 5MM LEDS
